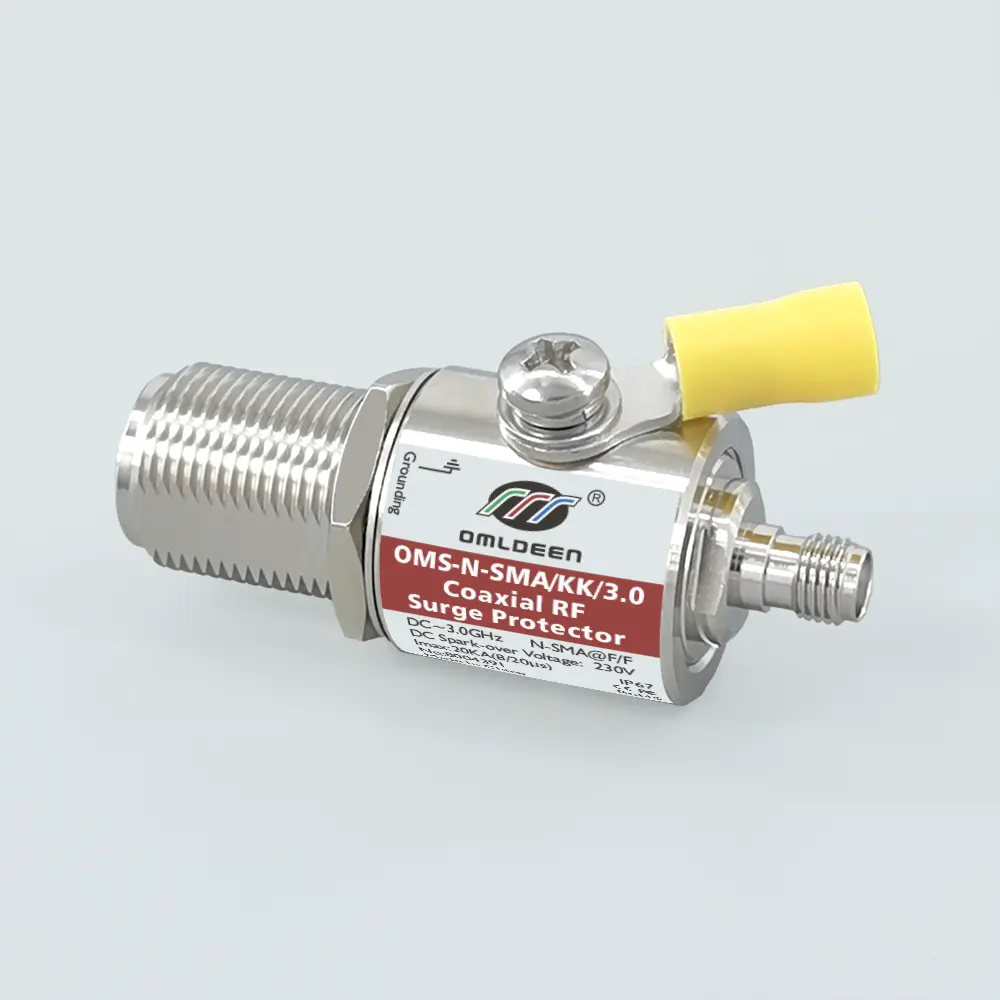

Type N to SMA@Female/Female(N@Wall-Penetrating) Coaxial RF SurgeProtector, DC- 3.0GHz,350w,IP67,20kA,CE,RoHs,FCC
Description:
The Omrdon OMS-N-SMA/KK/3.0 RF Surge Protector (a.k.a. Lightning Arrester), with N to SMA connectors, utilizes a GDT discharge design for almost instantaneous response to lightning surges, protecting the antenna while maintaining RF performance. This RF surge protector element is manufactured in a coaxial inline design with a wide operating frequency range.
Features:
- Surge current of 20KA
- Max Power 350W
- Frequency range from DC-3.0GHz
- Waterproof IP67 rated
- N to SMA type connector @ female to female (N@Wall-Penetrating)
- VSWR <1.2 ,Low insertion loss
- CE , RoHS , FCC
Applications:
- GNSS
- WiFi
- Radar stations
- Mobile communication
- Satellite communications
- Microwave stations
Technical Parameters:
| Name | Coaxial RF Surge Protector |
| Model | OMS-N-SMA/KK/3.0 |
| Interface way | N to SMA@Female/Female(50Ω)(N@Wall-Penetrating) |
| Nominal discharge current(In) | 10KA(8/20μs) |
| Maximum discharge current (Imax) | 20KA(8/20μs) |
| Response time (Ta) | ≤100ns |
| Maximum transmit power (Pt) | 350W |
| V.S.W.R | ≤1.2 |
| DC Spark-over Voltage(100V/s) | 90V/230V/350V (Optional) |
| Maximum lmpulse Spark-over Voltage (1000V/s) | 600V/700V/800V |
| Impedance | 50Ω |
| Insertion Loss | ≤0.2dB |
| Frequency Range | DC-3.0GHZ |
| Insulation resistance | ≥5000 MΩ |
| material | Brass@Electroplate Ternary Alloy |
| lngress Protection Rating (IP) | Ip67 |
| Ground Resistance Ω / wire diameter | ≤4Ω /≥4mm2 |
| Work Environment | -40 ~ +85ºC,Altitude≤4km |
| Relative humidity (at room temperature conditions) | 30%~90% |
| Size | 54.9*Φ21.5*27.2mm |
| Implementation of the standards | GBl8802.1/lEC61643-21/IEC60169-4 |
| Order No. | 8004391 |

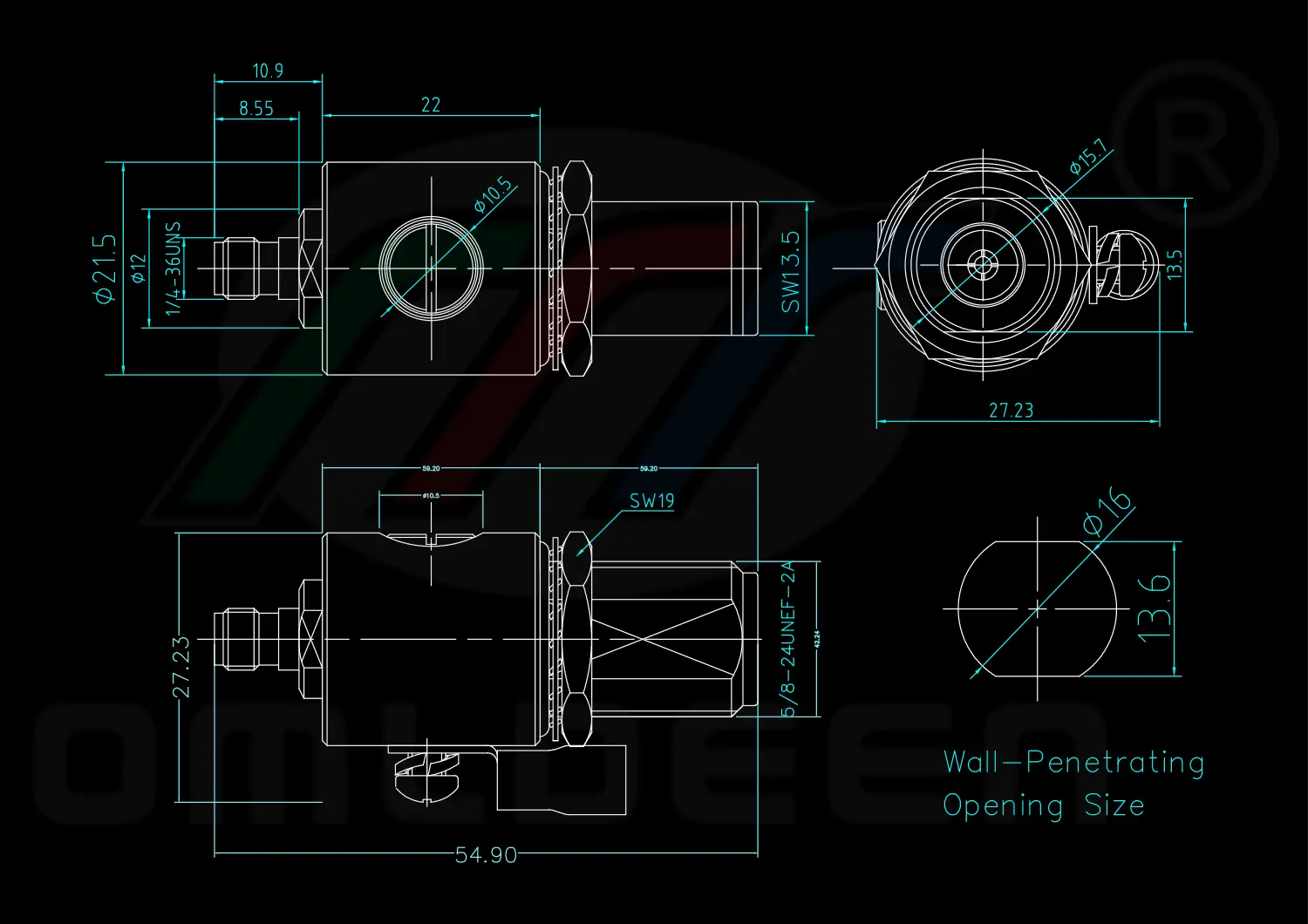

Product Size & Simulated lightning shock test:
