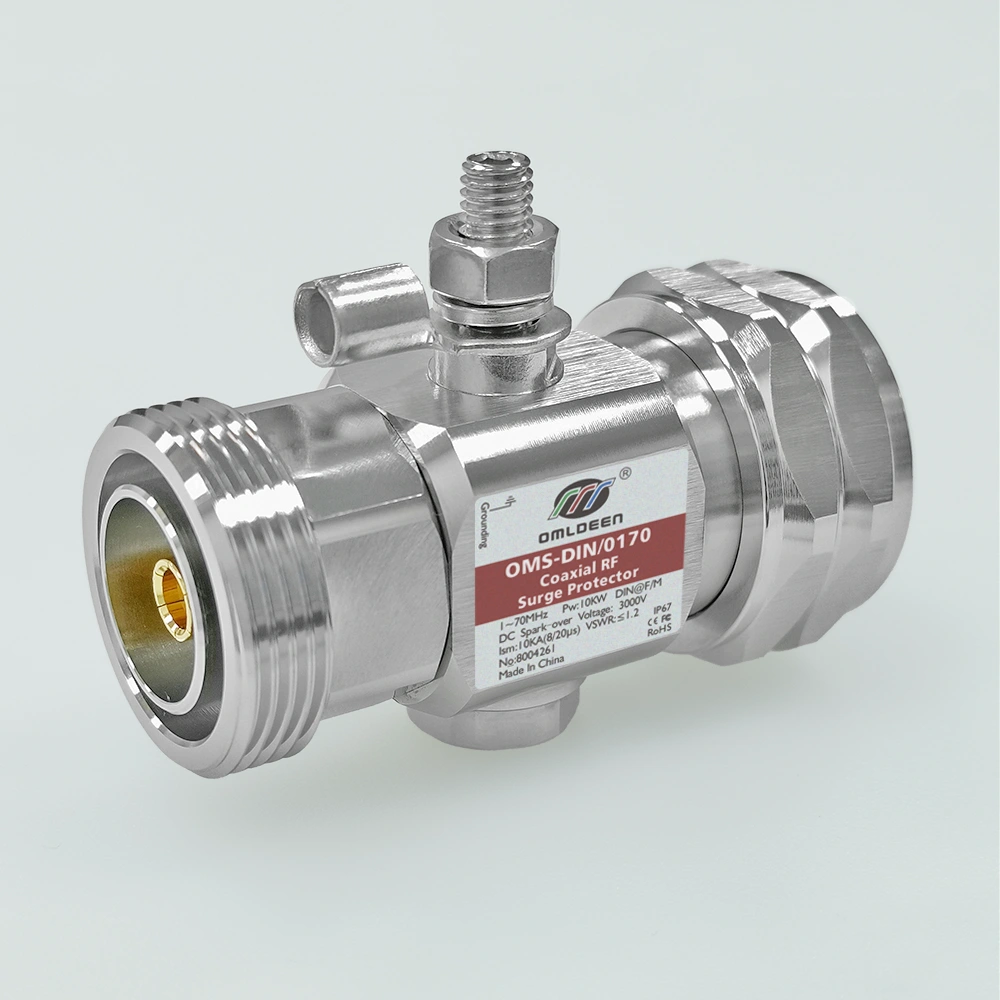

OMS-DIN/FM/0170 Coaxial RF Surge Protector 7/16DIN@Female to Male, 1-70Mhz , 10KW 3000V 10kA DC Pass,RF surge arresters for communication base station antennas, IP67,CE,RoHs,FCC
Description:
Omrdon’s OMS-DIN/0170 RF surge protector (also known as a lightning arrester) with GDT design provides an almost instantaneous response to a lightning surge to protect critical hardware while maintaining RF performance. It has a lower frequency band but more power for high performance antenna equipment.
Features:
- Surge current of 10KA
- Max Power 10KW
- Frequency range from 1-70MHz
- Waterproof IP67 rated
- 7/16DIN@female to male type connector
- VSWR <1.2, Low insertion loss
- DC Pass
- CE , RoHS , FCC
Applications:
- GNSS
- Radar stations
- Mobile communication
- Satellite communications
- Microwave stations
Technical Parameters:
| Name | Coaxial RF Surge Protector |
| Model | OMS-DIN/FM/0170 |
| Interface way | 7/16DIN@female to male type connector |
| Nominal discharge current(In) | 5KA(8/20μs) |
| Maximum discharge current (Imax) | 10KA(8/20μs) |
| Response time (Ta) | ≤100ns |
| Max transmit power (Pt) | 10KW |
| V.S.W.R | ≤1.2 |
| DC Spark-over Voltage(100V/s) | 3000V |
| Maximum lmpulse Spark-over Voltage (1000V/s) | 4200V |
| Impedance | 50Ω |
| Insertion Loss | ≤0.2dB |
| Frequency Range | 1-70MHZ |
| Insulation resistance | ≥5000 MΩ |
| material | Brass@Electroplate Ternary Alloy |
| lngress Protection Rating (IP) | Ip67 |
| Ground Resistance Ω / wire diameter | ≤4Ω /≥4mm2 |
| Work Environment | -40 ~ +85ºC,Altitude≤4km |
| Relative humidity (at room temperature conditions) | 30%~90% |
| Size | 67.5*48mm |
| Implementation of the standards | GB/T l8802.21 / lEC61643-21 / IEC60169-4 |
| Order No. | 8004261 |

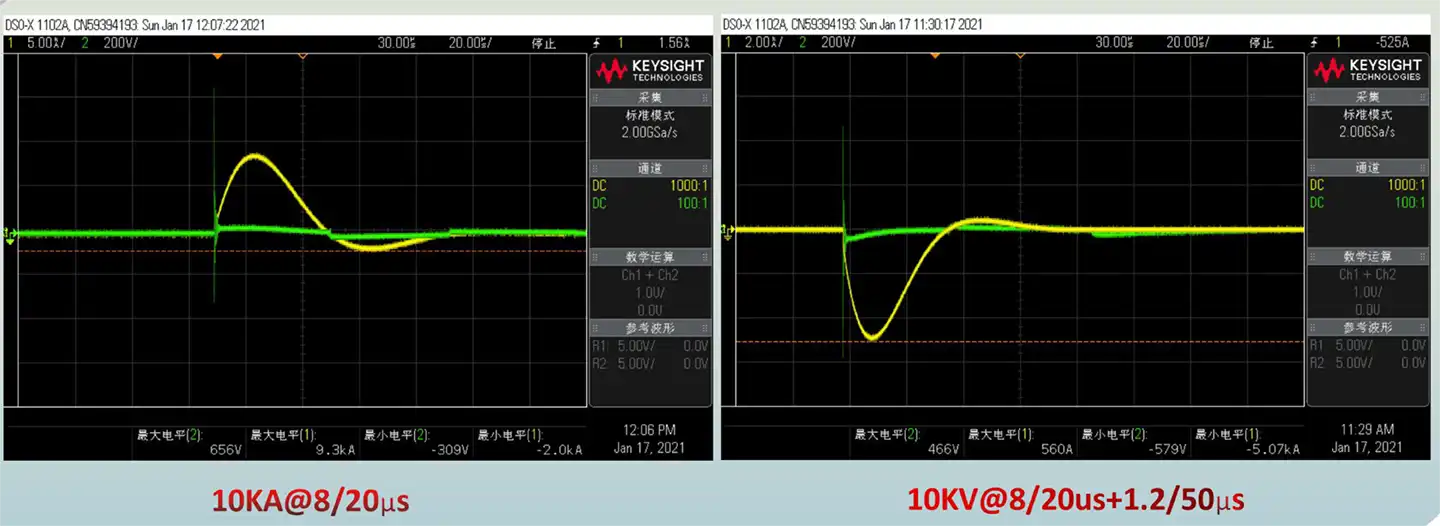

Product Size & Simulated lightning shock test
