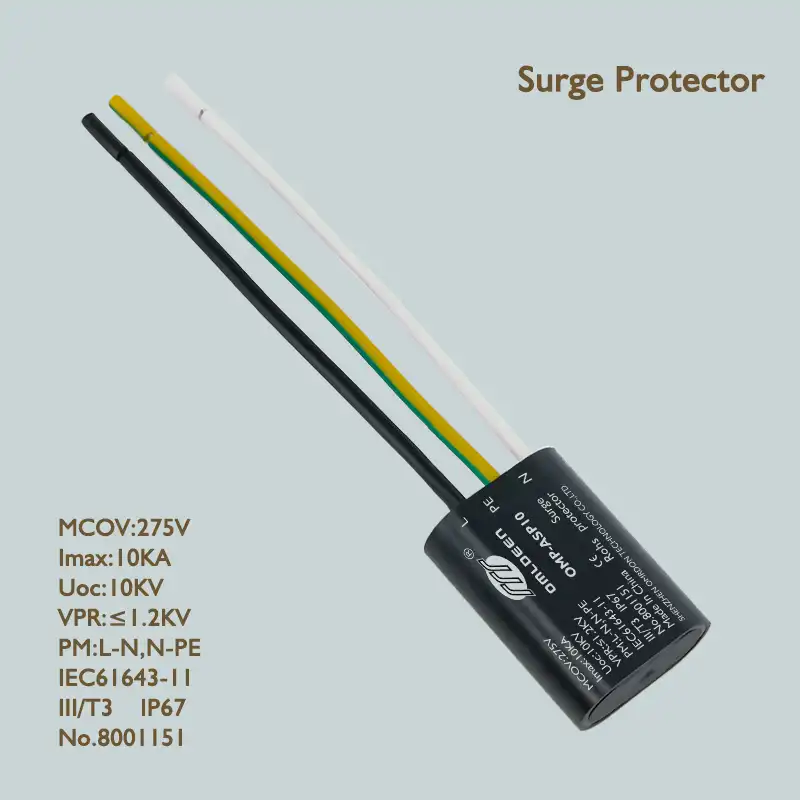

OMP-ASP10/275 10KV Lightning Arrester for LED Street Light ,Powe Surge Protector 10KA @8/20μs , CE,RoHs,IP67
Description
OMP-ASP10/20 is designed for protecting LED Driver and could be connected perfectly with it’s input port, sealed enclosure, waterproof and duxtproof, IP67 protection grade, belongs to Class III power SPD. This SPD use common mode, differential mode, full protection with leakage current and cut the overcurrent capabilities.
The product size is very small , very convenient in installing. The maximum discharge current is 10KA/line,maximum discharge voltage is 10KV, especially good for protecting LED street lights and LED flood lights from lightning surge damage.
Features:
- Max Surge Current 10KA(8/20μs)
- Open Circuit Voltage(Uoc) 10KV(1.2/50μs), ( Impact 40 times )
- Sealed waterproof waterproof housing IP67
- UL/VDE/CCC certified copper core cable wire
- LED indicators for easy viewing of faults (Selectable,when applicable)
- Appearance/color can be changed according to customer needs
- Accept OEM/ODM
- CE, FCC and RoHS compliant
Applications:
- LED Street Lights
- LED Flood Lights
- LED Highbay Lights
- Outdoor LED Lighting
- Commercial LED Lighting
- Tunnel Lighting
- Garage and Parking Lot
- Building and Corridor lights
- Other terminal equipment power protection
Technical Parameters:
| Model | OMP-ASP10/275 |
| Rated Working Voltage(Un) L-N | 220VAC (50Hz/60Hz) |
| Max continuous operating voltage(Uc) | 275VAC |
| T3 Open Circuit Voltage (Uoc) | 10KV(1.2/50μs) (40 times) |
| T3 Voltage Protection Rating (VPR) | 1.2kV@L-N/PE,1.8kV@N-PE |
| T2 Nominal Surge Current (In) | 5 KA(8/20μs) |
| T2 Max Surge Current (Imax) | 10 KA(8/20μs) |
| Response time (Ta) | ≤25 ns |
| Modes of protection | L-N,L-PE,N-PE |
| Leakage Current(LC) | ≤5μA |
| Test level(Category IEC/VDE/GB) | classIII/D/T3/T2 |
| Wires | 16AWG/1mm2@100mm |
| Flammability | PC @UL94 VO |
| Size | 35×26×14mm |
| Weight | 25g |
| SPD Connection Type With Load | Parallel connection |
| Temperature Operating Range | -40 ~ +85℃,Altitude≤4km |
| lngress Protection (IP) Rating | 30%~90% |
| Waterproof rating | IP67 |
| Compliance Certifications | CE, RoHs |
| Implementation of the standards | GB18802.11/lEC61643-11 |
| Order No. | 8001151 |
Model List:
| Type | LED Fail indicator | Nominal VoltageUn@L-N(Vac) | Open circuit voltage (Uoc)(KV) | Maximum Continuous Operating Voltage, MCOV (Vac) | Voltage Protection Rating (VPR)(KV) | Class I 10/350μs(KA) | Class II 8/20μs(KA) | ||||
| L-N | L-G | N-G | L-N | L-G | N-G | L/N-GN-G | L/N-G | ||||
| OMP-ASP10/150 | none | 110/120 | 10 | 150 | – | 150 | 0.7 | – | 1.5 | 1.0 | 5/10 |
| OMP-ASP10/275 | none | 220/230 | 10 | 275 | – | 255 | 1.2 | – | 1.8 | 1.0 | 5/10 |
| OMP-ASP20/150 | none | 110/120 | 20 | 150 | – | 150 | 0.8 | – | 1.5 | 1.5 | 10/20 |
| OMP-ASP20/275 | none | 220/230 | 20 | 275 | – | 255 | 1.3 | – | 1.8 | 1.5 | 10/20 |
| OMP-ASP10/150L | YES | 110/120 | 10 | 150 | – | 150 | 0.7 | – | 1.5 | 1.0 | 5/10 |
| OMP-ASP10/275L | YES | 220/230 | 10 | 275 | – | 255 | 1.2 | – | 1.8 | 1.0 | 5/10 |
| OMP-ASP20/150L | YES | 110/120 | 20 | 150 | – | 150 | 0.8 | – | 1.5 | 1.5 | 10/20 |
| OMP-ASP20/275L | YES | 220/230 | 20 | 275 | – | 255 | 1.3 | – | 1.8 | 1.5 | 10/20 |
Simulated lightning shock test:
OMP-ASP10-LED SPD -test
Product Size :
