TypeN@F/M Coaxial RF SurgeProtector, DC- 3.0GHz,550w,IP67,20kA,CE,RoHs,FCC
Description:
RF surge protector (also known as lightning arrester) OMS-N/JK-3.0 from Omrdon utilizing GDT design enables an almostinstantaneous response to a lightning surge to protect critical hardwarewhile maintaining the RF performance. This RF surge protector component ismanufactured in a coaxial in-linedesign with wide operating frequency range.
Features:
- Surge current of 20KA
- Max Power 550W
- Frequency range from DC-3.0GHz
- Waterproof IP67 rated
- N-type connector @ female to male
- VSWR <1.2 Low insertion loss
- CE , RoHS , FCC
Applications:
- GNSS
- WiFi
- Radar stations
- Mobile communication
- Satellite communications
- Microwave stations
Technical Parameters
| Name | Coaxial RF Surge Protector |
| Model | OMS-N-JK/3.0 |
| Interface way | N@F/M(50Ω) |
| Nominal discharge current(In)(8/20μs) | 10KA |
| Maximum discharge current (Imax)(8/20μs) | 20KA |
| Response time (Ta) | ≤100ns |
| Maximum transmit power (Pt) | 550W |
| V.S.W.R | ≤1.2 |
| DC Spark-over Voltage(100V/s) | 90V/230V |
| Maximum lmpulse Spark-over Voltage (1000V/s) | 600V/700V |
| Impedance | 50Ω |
| Insertion Loss | ≤0.2dB |
| Frequency Range | DC-3.0GHZ |
| Insulation resistance | ≥5000 MΩ |
| material | Brass |
| lngress Protection Rating (IP) | Ip67 |
| Ground Resistance Ω / wire diameter | ≤4Ω /≥4mm2 |
| Work Environment | -40 ~ +85ºC,Altitude≤4km |
| Relative humidity (at room temperature conditions) | 30%~90% |
| Size | 66.5*25*25mm |
| Implementation of the standards | GBl8802.1/lEC61643-21/IEC60169-4 |
| Order No. | 800403 |

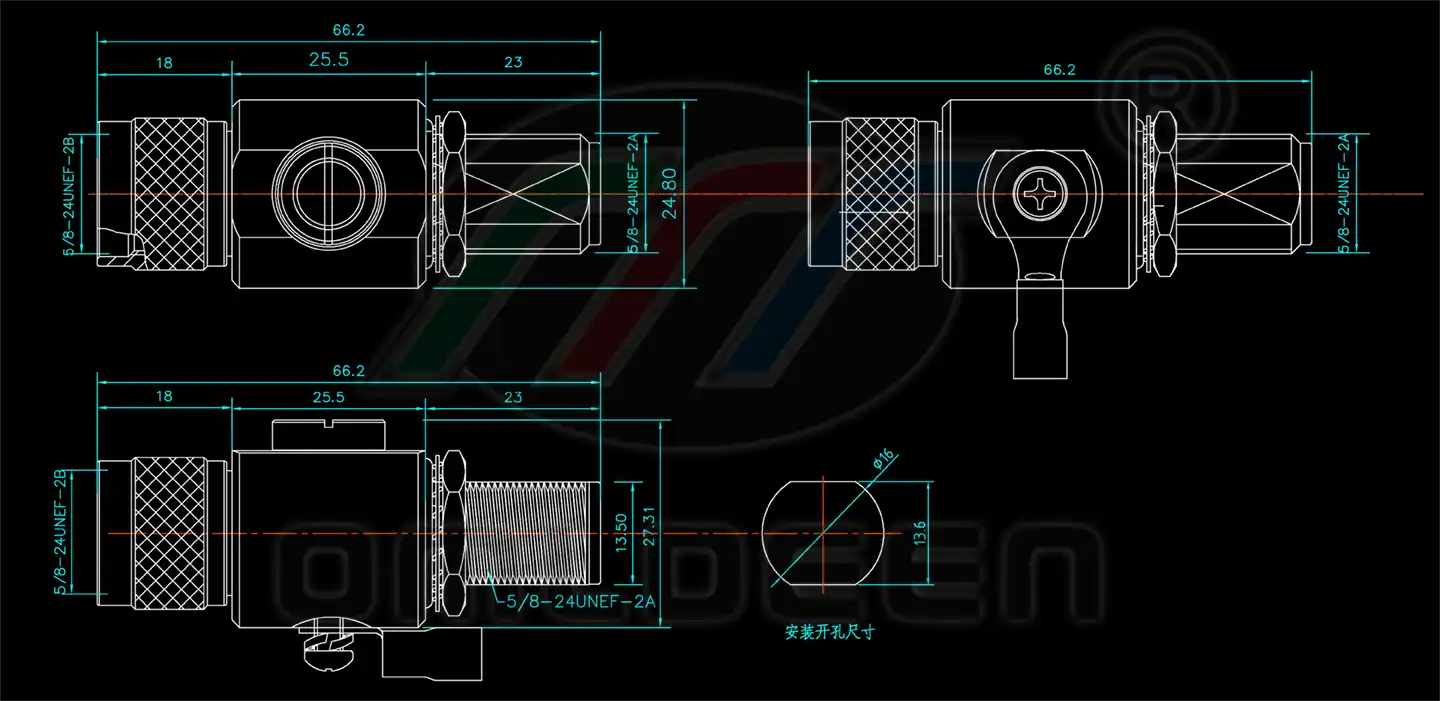

Product Size & Simulated lightning shock test
