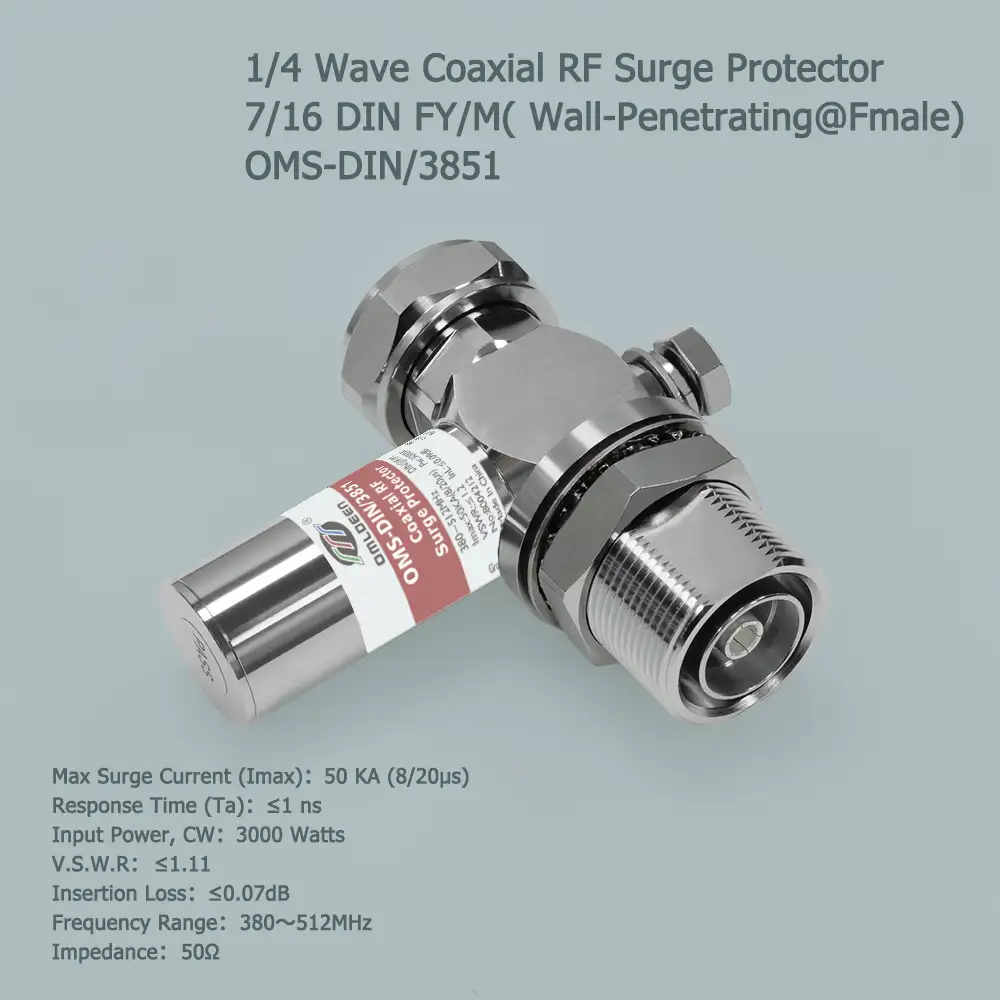

DIN(L29) Coaxial RF Surge Protector λ/4 , 380-512Mhz , 3000W 50KA IP67 FY/M Wall-Penetrating ,CE RoHs FCC
Description
This RF coaxial antenna surge suppressor is designed to protect wireless base stations, switching centres, and transmission lines from the damaging effects of extreme high-voltage surges caused by lightning strikes.
It has a high impact current withstand of up to 50KA, a low residual voltage value, and minimal signal insertion loss. It effectively inhibits interference from different frequencies.
in the harshest environments imaginable.
Features:
- Surge current of 50KA(8/20μs)
- Max Power 3000W
- Frequency range from 380-512MHz
- Waterproof IP67 rated
- Female to male @DIN connector
- Female@wall-penetrating
- VSWR <1.11
- Insertion loss ≤0.07 dB
- CE & RoHS & FCC compliant
Applications:
- GNSS
- Radar stations
- Mobile communication
- Satellite communications
- Microwave stations
Technical Parameters
| Name | Coaxial RF Surge Protector |
| Model | OMS-DIN/3851 |
| Interface way | 7/16DIN@Female to Male,Female@wall-penetrating |
| Nominal discharge current(In) | 25KA(8/20μs) |
| Maximum discharge current (Imax) | 50KA(8/20μs) |
| Response time (Ta) | ≤1ns |
| Maximum transmit power (Pt) | 3000W |
| Voltage Protection Rating (VPR)(X-PG) | ≤15V |
| V.S.W.R | ≤1.11 |
| Insertion Loss | ≤0.07dB |
| 3rd order IMD | -150dBM |
| Frequency Range | 380-512MHz |
| Impedance | 50Ω |
| Insulation resistance | ≥5000 MΩ |
| Material | Brass@electroplate Ternary alloy |
| lngress Protection Rating (IP) | IP67 |
| Ground Resistance Ω / wire diameter | ≤4Ω /≥4mm2 |
| Work Environment | -40 ~ +85ºC,Altitude≤4km |
| Relative humidity (at room temperature conditions) | 30%~90% |
| Size | 80*87.3*37mm |
| Implementation of the standards | GBl8802.1/lEC61643-21/IEC60169-4 |
| Order No. | 8004212 |

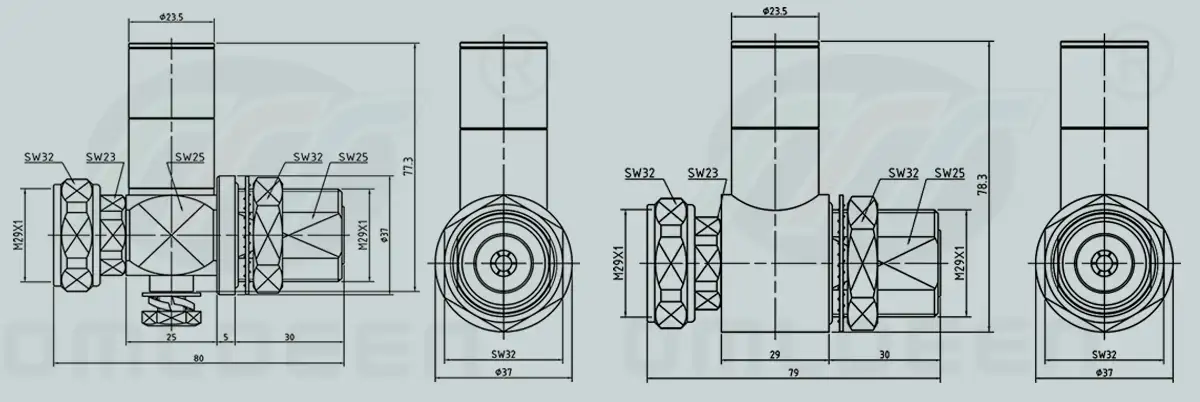

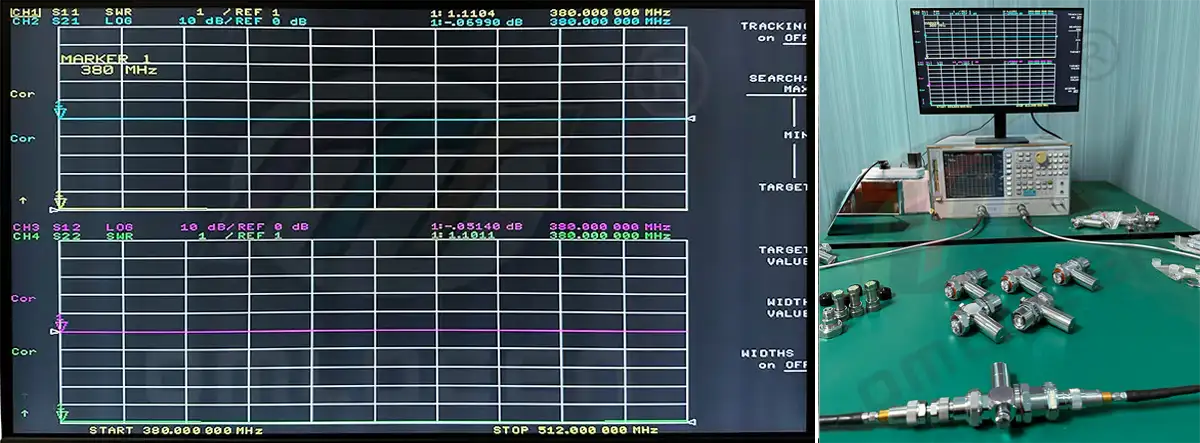

Product Size & Simulated lightning shock test
