Product Description
Modern communication systems, which are based on Ethernet, offer today a lot of possibilities of communication and data exchange. Even end devices can be powerd direclty with POE (power of over Ethernet) directly without addional power lines. Overvoltages, which arise by galvanic, capacitive or inductive couplings in data lines, can destroy these devices. Particularly high-speed networks are today the life veins of almost any company. Here a good and professional protection is nessesary.
For already existing networks and also future networks up to 10GBit offers an optimized overvoltage protection device for high-speed networks.
OMS-RJ45/POE/10G supports power of over Ethernet with rated currents up to 1A with optimized overvoltage protection in the Channel up to 10GBit. This corresponds to a Channel performance conform ISO/IEC 11801 Amd. 2 of the CLASS EA and CAT 6A after TIA/ANSI,Downward compatibility is naturally likewise ensured.
Technical Parameter
| Name | POE Overvoltage Protection Device |
| Type | OMS-RJ45/POE/10G |
| SPD category | Compound |
| Rated working voltage Un | 5VDC (DC/POE:48VDC) |
| maximum continuous operating voltage Uc | 6VDC (DC/POE:60VDC) |
| Maximum Working current Imaxwc | 1A |
| C2 Nominal discharge current per line(8/20µs)In | 100A(X-X),2.5KA(X-PG) |
| C2 total Maximum discharge current(8/20µs) Itotal | 10KA(X-PG) |
| Voltage protection level (10/700µs) Up | ≤20V (X-X),≤800V (X-PG) |
| Maximum transmission rate Vs | 10Gbps |
| Insertion Loss Ae | ≤0.2dB |
| Core wire protective | RJ45(1/2,3/6,4/5,7/8) |
| Degree of protection | IP20 |
| Case Material | Aluminium alloy |
| Size | 103×42×34mm |
| Fixed way | 35mm DIN rail (optional) |
| Work Environment | Temperature -40~+80ºC;Humidity≤95 (25~30ºC) |
| Test basis | IEC61643-21 |

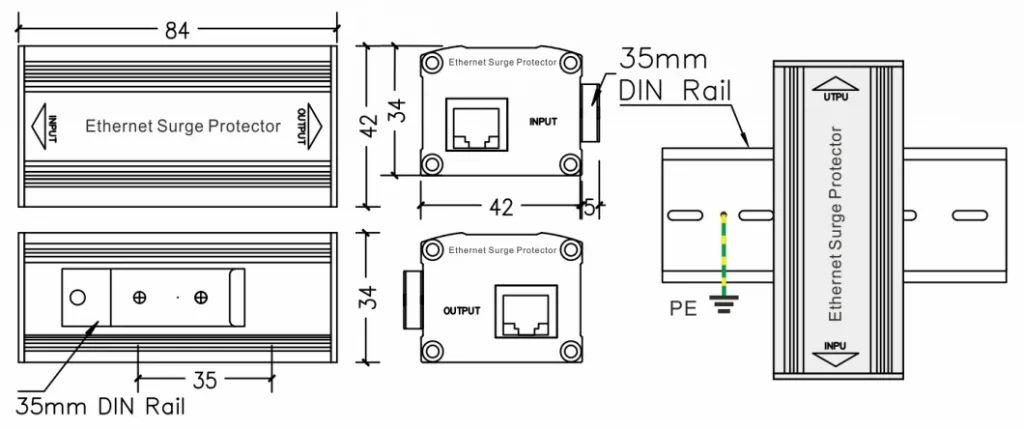

Product Size
